Features PTFE-lined surfaces for excellent corrosion and aging resistance, ideal for acids, strong corrosive, toxic, or volatile gases and liquids.
Request a QuoteWUYI's PTFE-lined corrosion-resistant control valves use high-pressure injection molding for all media-contact surfaces, lined with PTFE for excellent corrosion and aging resistance. Suitable for acids like hydrochloric, sulfuric, nitric, and hydrofluoric acid, the valve also features a PTFE bellows seal. It is widely used in process control involving strong corrosive, toxic, or volatile gases and liquids.
| Parameter | Specification |
|---|---|
| Body Type | Straight through type, angle type, jacket insulation type |
| Plug Type | Multistage throttle spool |
| Nominal Diameter | DN15~350mm / NPS 1/2"~14" |
| Nominal Pressure | PN0.6~2.5MPa / CLASS 150LB |
| Applicable Temperature | -30℃~+180℃ (optional according to working conditions) |
| Type of Connection | Flange (RF side, FM side) |
| Flange Distance | Meet IEC 60534, Non-standard customization |
| Gland Type | Bolt compression type |
| Sealing Gasket | Serrated metal gasket |
| Packing | PTFE, flexible graphite |
| Actuator | Pneumatic actuator, electric actuator |
Note: Specific values depend on the selected model configuration. Please consult WUYI Control for detailed specifications.

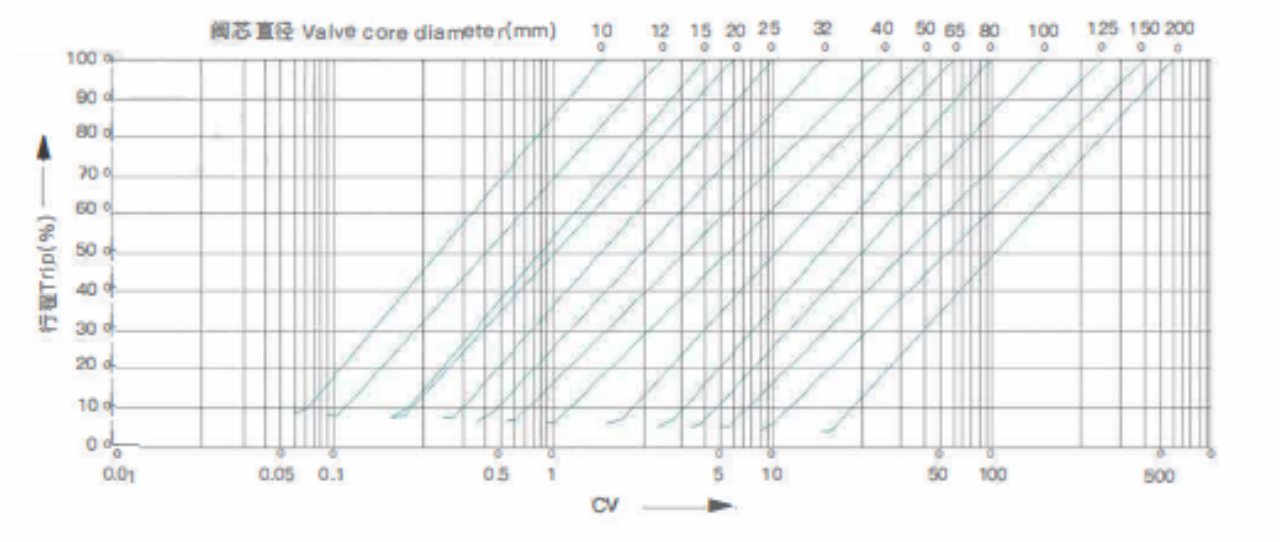

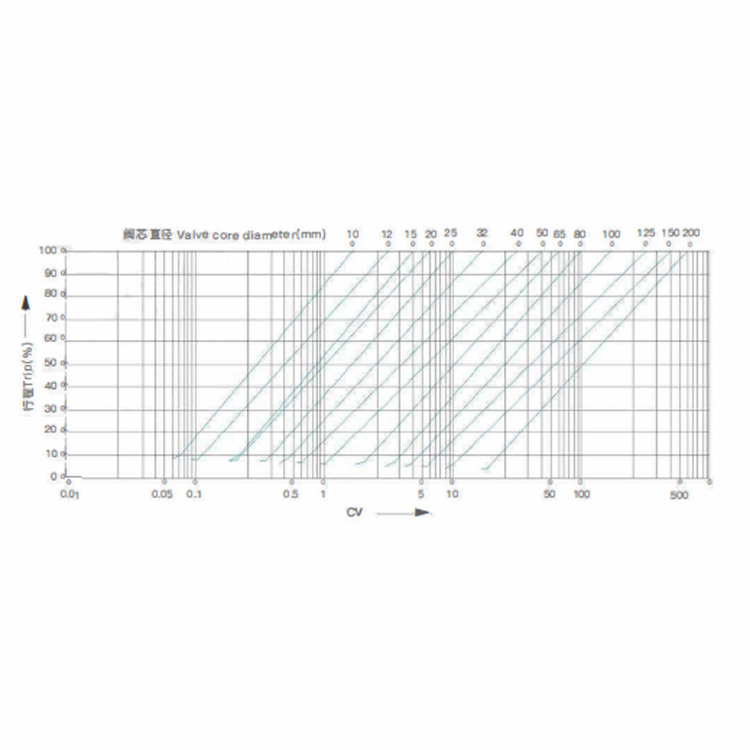

Flow characteristic curve for PTFE Lining Anti-Corrosion Control Valve, showing the relationship between valve opening percentage and flow rate.
