TOP-GUIDE HIGH-PRESSURE CONTROL VALVE

Features cage-guided, pressure-balanced plugs ideal for high differential pressure conditions with flashing or cavitation, available in sizes DN20-DN200 with pressure ratings up to 2500LB.

Request a Quote

Product Overview

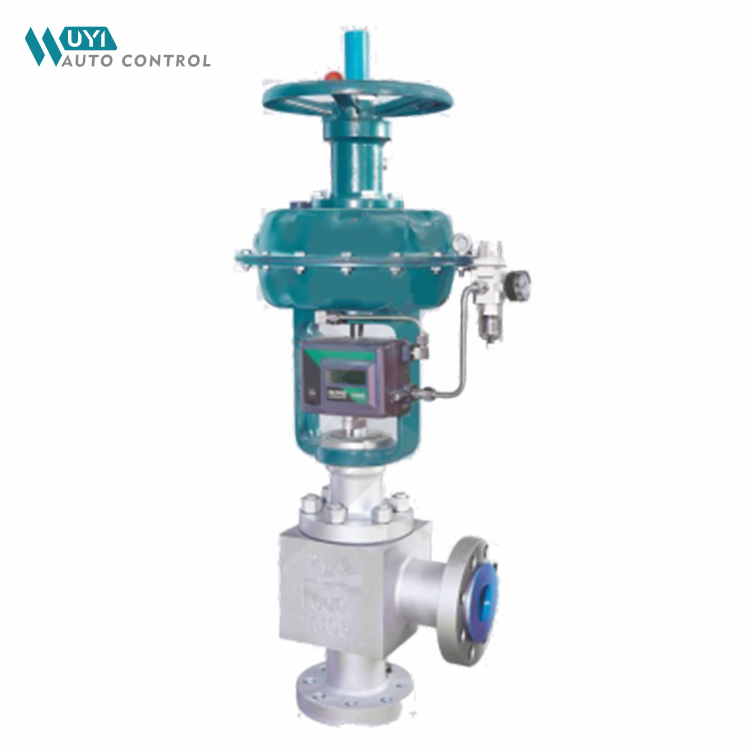

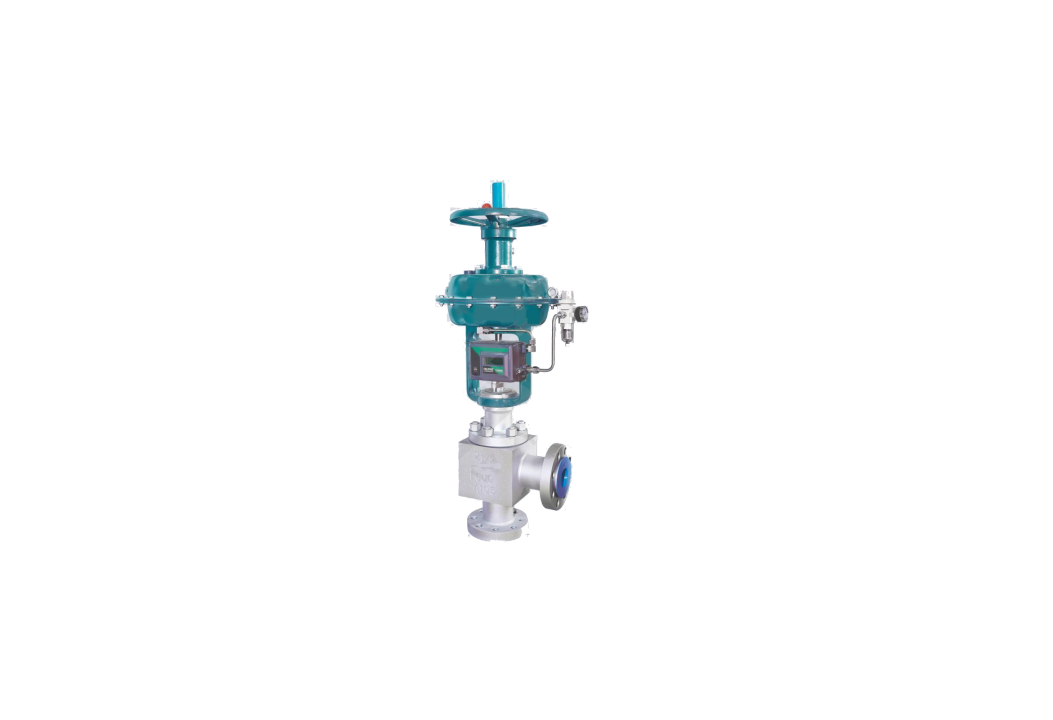

WUYI's top-guided high-pressure control valves feature cage-guided, pressure-balanced plugs. They are ideal for high differential pressure conditions with flashing or cavitation. The valve offers flexible design options, with sizes ranging from DN20 to DN200 and pressure ratings up to 2500LB. Compatible with various electric or pneumatic actuators.

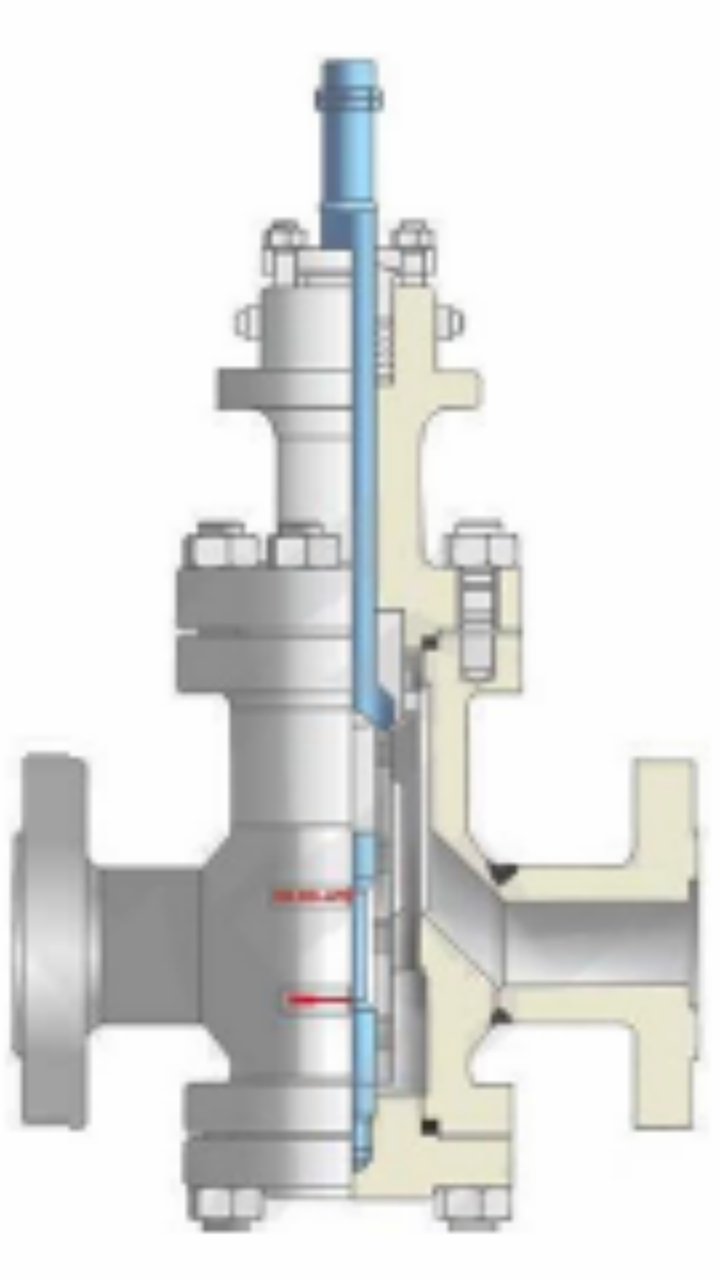

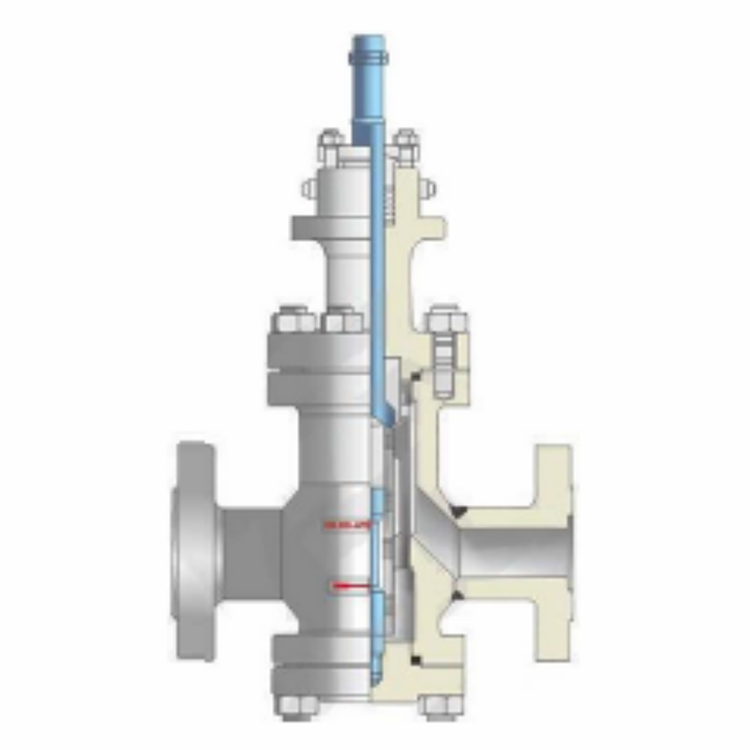

Technical Parameters

Parameter	Specification
Body Type	Straight through forging body
Plug Type	Multistage throttle plug
Nominal Diameter	DN20~200mm; NPS 3/4"~8"
Nominal Pressure	PN10.0-42.0MPa; CLASS 600~2500LB
Applicable Temperature	-196~+650°C (Customized based on material)
Type of Connection	Flange, welding, thread
Flange Distance	Meet IEC 60534, Non-standard customization
Gland Type	Bolt compression type
Sealing Gasket	Serrated metal gasket
Packing	PTFE, Flexible Graphite
Actuator	Pneumatic actuator, electric actuator
