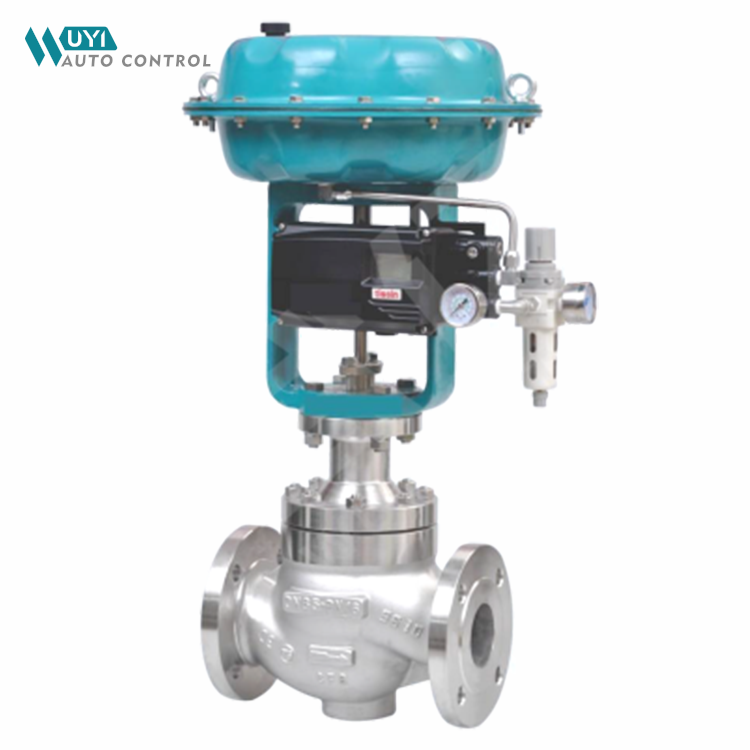

Product Overview
The wuyi single-seat control valve features a top-guided balanced plug design with highstrength,heavy load capacity,S-type flow path,low pressure loss,large flow coefficient,wide control range,and high flow characteristic precision.It is ideal for low differential pressure conditions,ensuring tight shut-off and accurate flow or pressure regulation.
Key Features

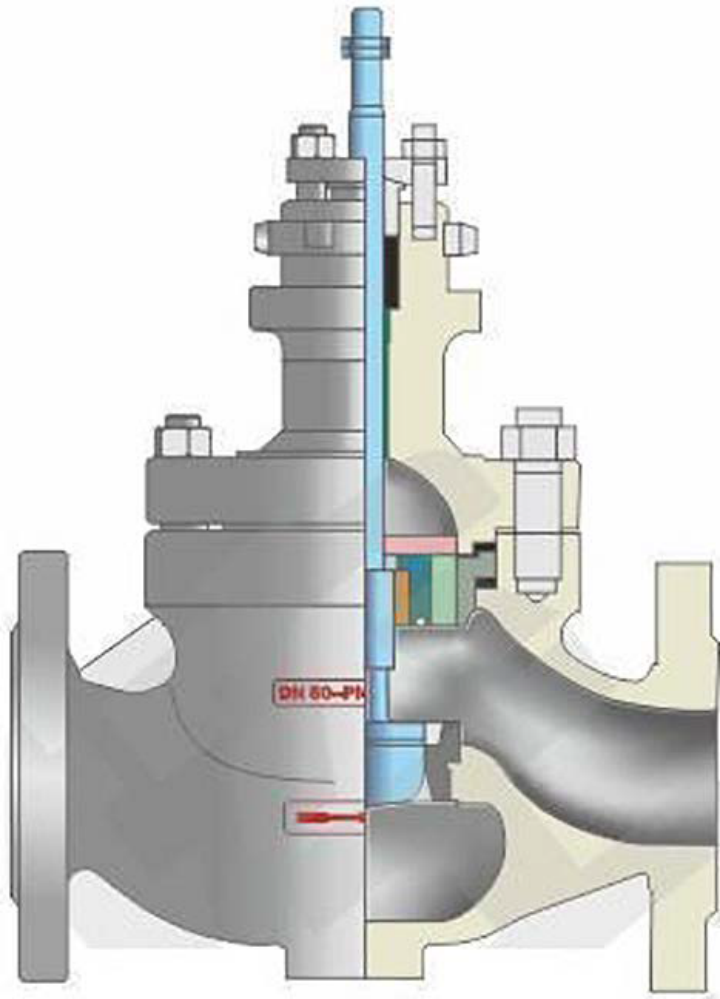

WUYI's valves adopt a cage-retained seat structure, offering high reliability and easy maintenance. This design solves the problem of non-replaceable seats in traditional valves, effectively extending service life. With a flow-to-open design, the medium moves in the direction of valve opening, ensuring good control at small openings and minimal flow characteristic distortion. Electric or pneumatic actuators can be selected based on working conditions.

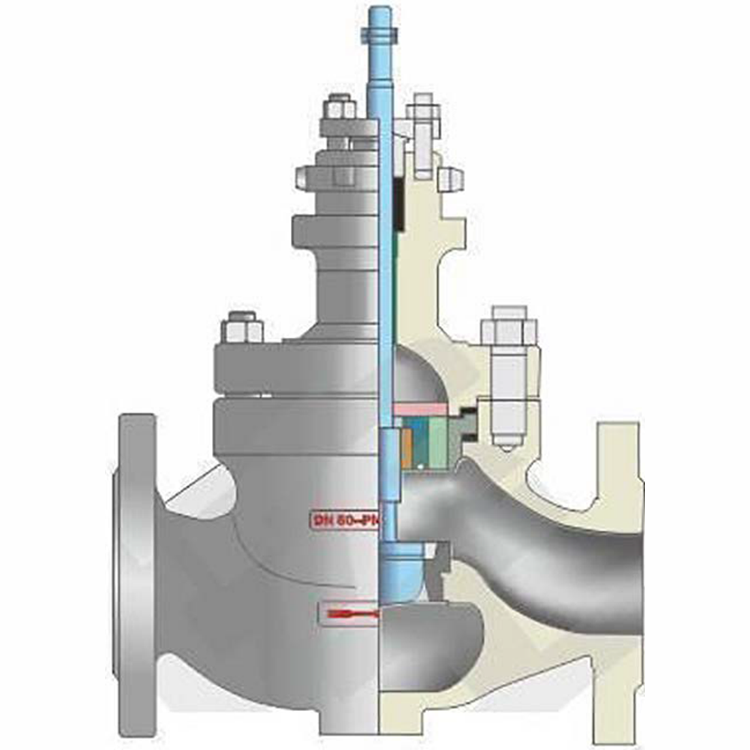

Technical Parameters
| Parameter |
Value / Options |
| BodyType |
Straight-through S-type cast valve |
| Plug Type |
Balance cage single-seat plunger valve core |
| Nominal Diameter |
DN15~300mm; NPS 1/2"~12' |
| Nominal Pressure |
PN1.6-6.4MPa; CLASS 150~300LB |
| Applicable Temperature |
-196~+550°C B8(Optional according to working conditions) |
| Type of Connection |
Flange, welding, thread (applicable within 1") |
| Flange Distance |
IEC 60534 (According to IEC 60534) |
| Gland Type |
Bolt compression type |
| Sealing Gasket |
Metal graphite spiral wound gasket |
| Packing |
PTFE, flexible graphite |
| Actuator |
Pneumatic actuator, electric actuator |
Note: Specific values depend on the selected model configuration. Please consult WUYI Control for detailed specifications.
Flow Characteristic Curve

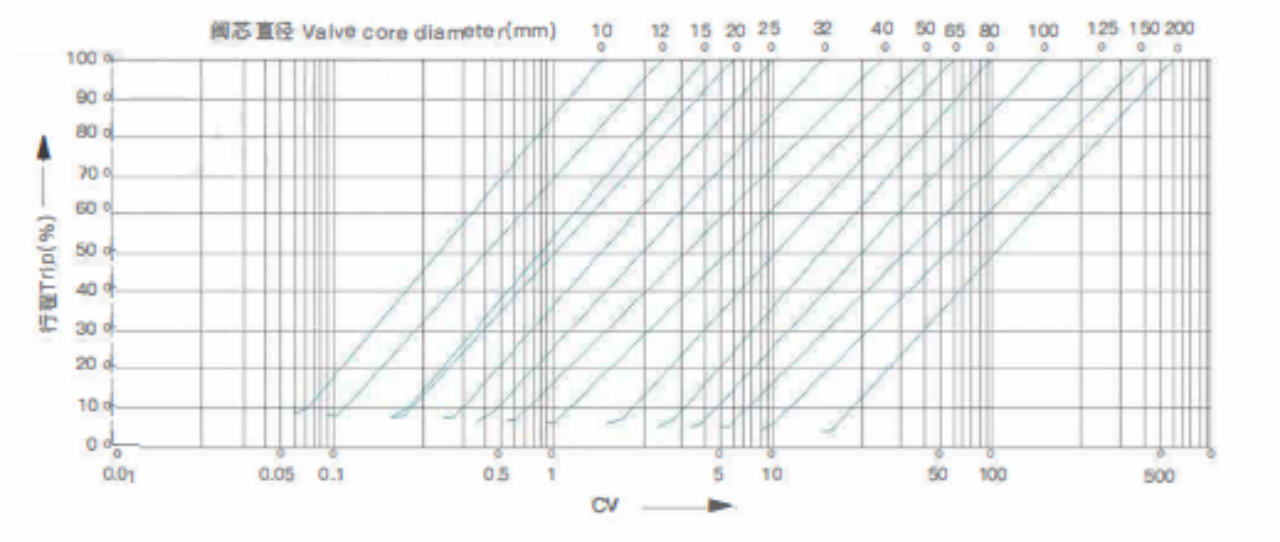

Flow Characteristic Curve for Top-Guide Single-Seated Control Valve (High Performance).
