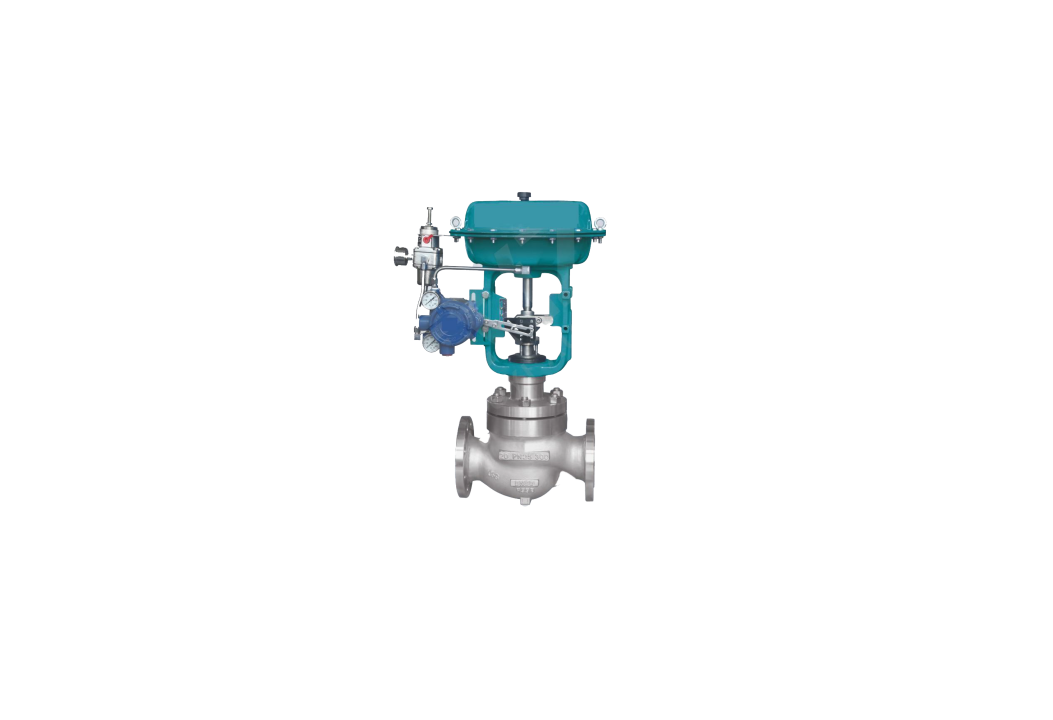

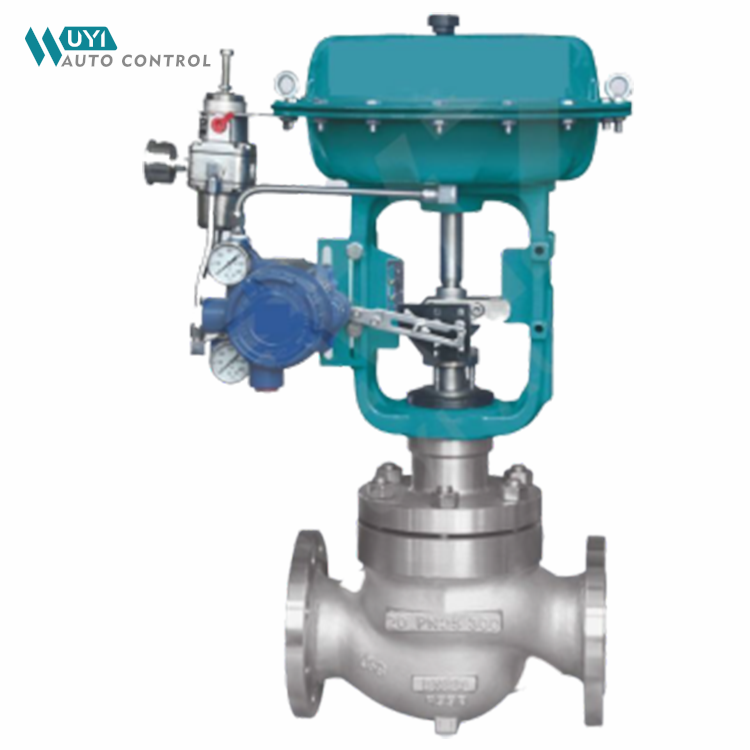

Product Overview
WUYI's double-sealed cage control valves feature cage-guided, pressure-balanced plugs.With a dual metal-seal design, they are suitable for applications with low leakage requirements and offer a wider operating temperature range.
Key Features
WUYI's valves feature a pressure-balanced plug, requiring low actuating force even under high differential pressure. Suitable for fluid control in medium-to-low temperature and pressure pipelines with high dynamic stability requirements. They offer excellent sealing, large allowable pressure difference, and high stability with a compact, cage-guided structure. Internal parts can be replaced quickly in-line, improving maintenance efficiency.

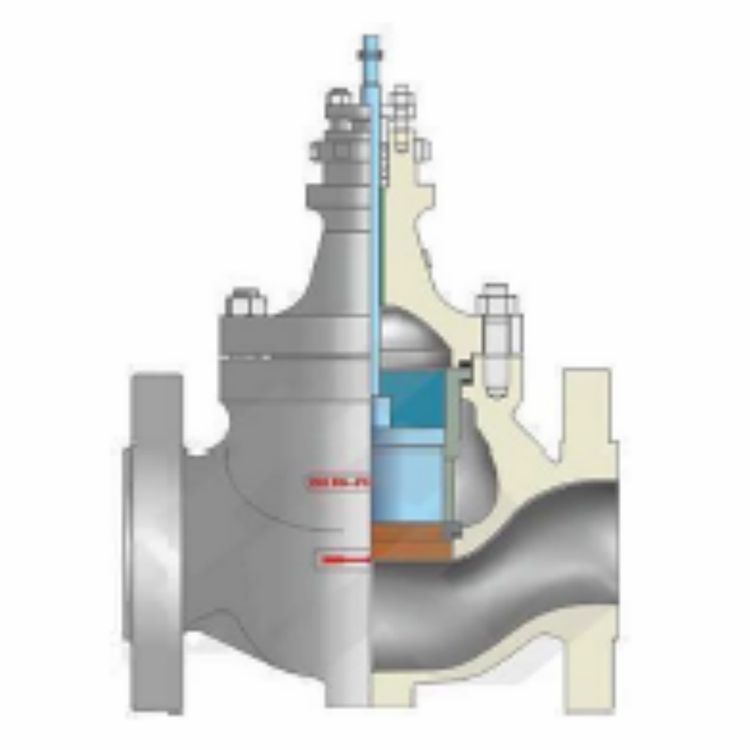

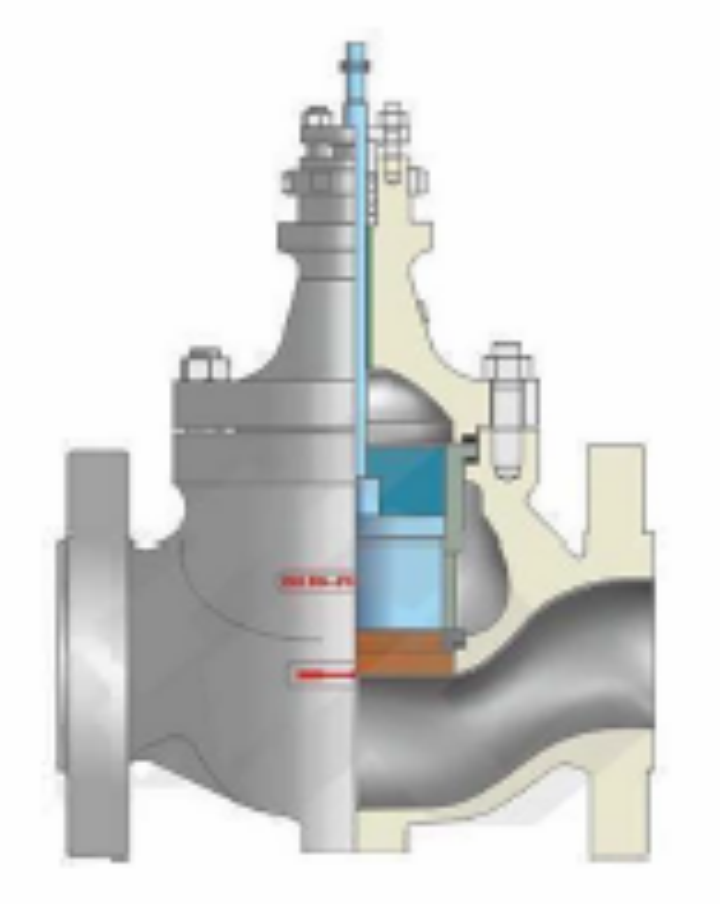

Technical Parameters
| Parameter |
Value / Options |
| Body Type |
Straight-through S-type cast valve |
| Plug Type |
Balanced cage sleeve valve core |
| Nominal Diameter |
DN15~500mm; NPS 1/2"~20' |
| Nominal Pressure |
PN1.6-10.0MPa; CLASS 150~600LB |
| Applicable Temperature |
-196~+550°C B8(Optional according to working conditions) |
| Type of Connection |
Flange, welding, thread (applicable within 1") |
| Flange Distance |
IEC 60534 (According to IEC 60534) |
| Gland Type |
Bolt compression type |
| Sealing Gasket |
Metal graphite spiral wound gasket |
| Packing |
PTFE, flexible graphite |
| Actuator |
Pneumatic actuator, electric actuator |
Note: Specific values depend on the selected model configuration. Please consult WUYI Control for detailed specifications.
Flow Characteristic Curve

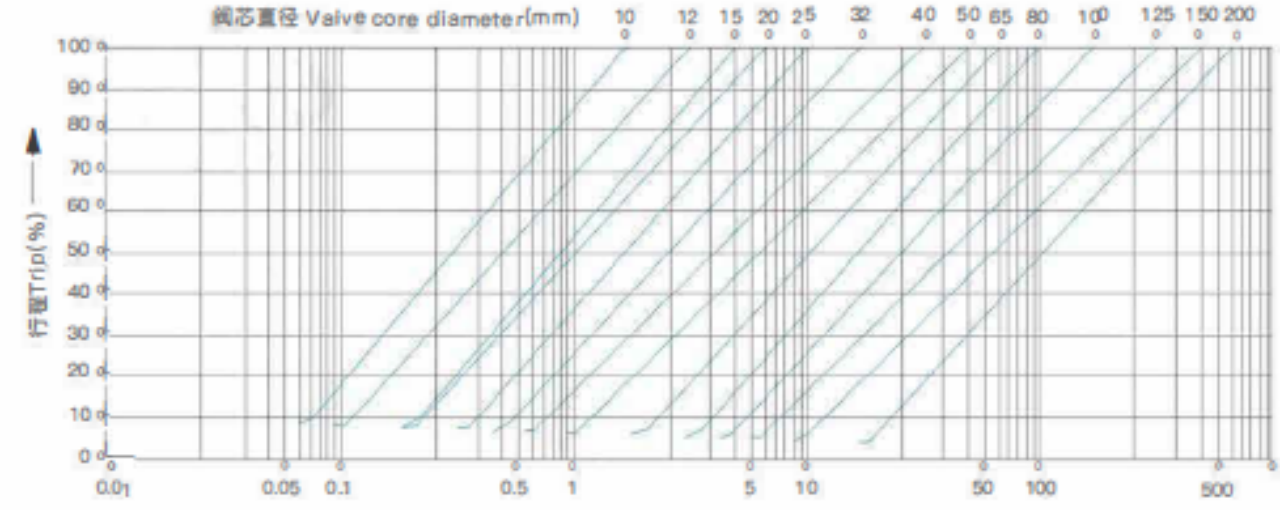

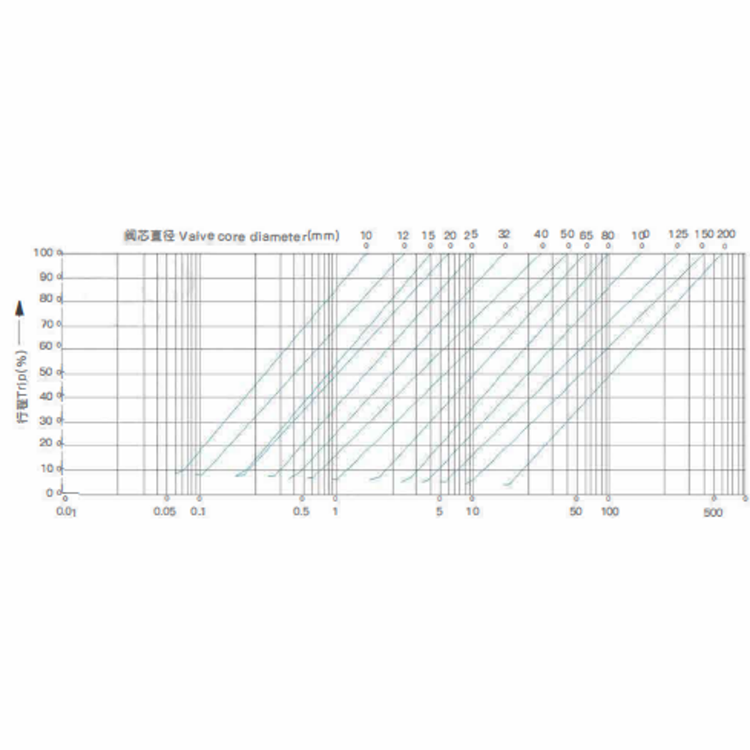

Flow Characteristic Curve for Top-Guide Type Sleeve Control Valve.
