Wuyi's V230WD self-operated electric temperature control valve operates on 220V power, utilizing medium's thermal energy for automatic temperature regulation of steam, hot water, thermal oil and gases.
Request a QuoteWuyi's V230WD self-operated electric temperature control valve operates on 220V power, utilizes medium's thermal energy for automatic temperature regulation of steam, hot water, thermal oil and gases, prevents overheating in heat exchange systems, features wide temperature range coverage, fast response, simple structure, reliable sealing and real-time adjustability, widely applied in chemical, petroleum, food, textile and hospitality industries for efficient thermal management and hot water supply.
Parameter | Value / Options |
---|---|
Body form | Straight-through cast body |
Plug form | Non-balanced single seat plug |
Nominal Diameter | DN20~200mm NPS 3/4"-8" |
Nominal Pressure | PN1.6-4.0MPa; CLASS 150-300LB |
Temperature Range | -20~+425°C |
Type of Connection | Flange |
Leakage level | A per ASME B16.104 |
Set value deviation | ±5% |
Actuator | Temperature-controlled electric actuator |
Note: Specific values depend on the selected model configuration. Please consult WUYI Control for detailed specifications.

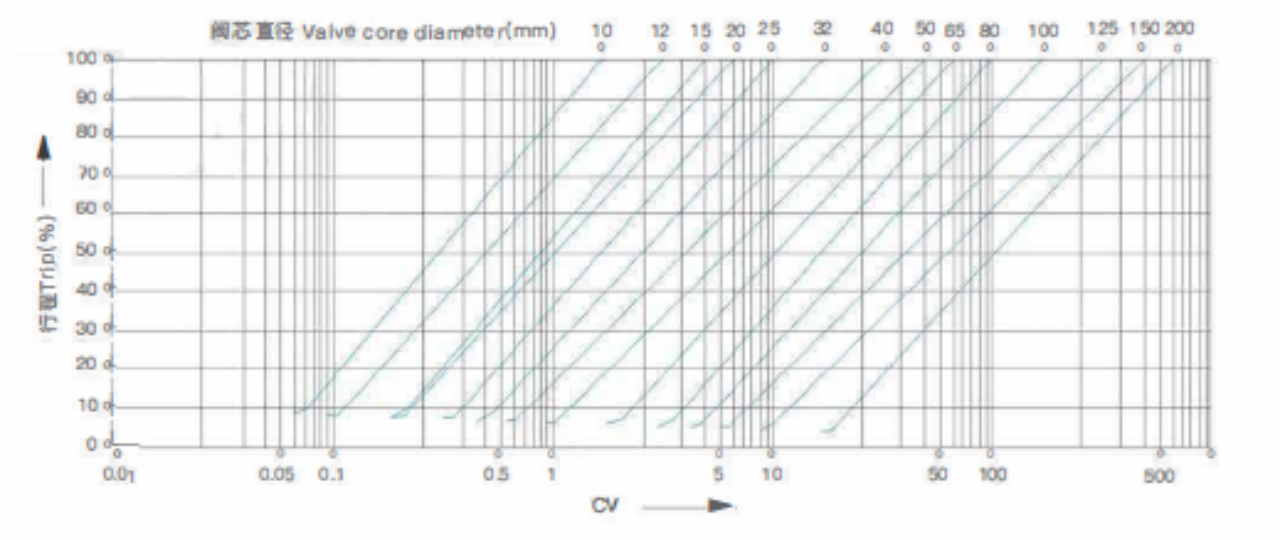

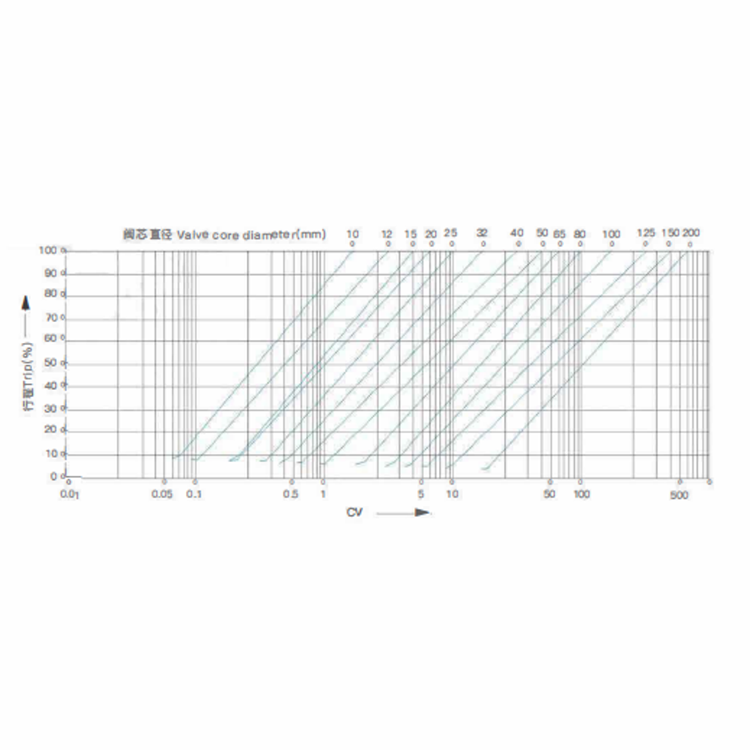

Flow characteristic curve for Self-Operated Electric Control Temperature Valve, showing the relationship between valve opening percentage and flow rate.
